Animated onboarding screens: storyboard, runtime and testing guide
Plan animated onboarding with a state storyboard, Rive and Lottie evaluation questions, reduced-motion fallbacks and a device test worksheet.
Animated onboarding screens can demonstrate an unfamiliar interaction, acknowledge a choice or explain a change in state. Give each motion a specific job, and keep the first useful action available when the animation is skipped, interrupted or unavailable.
This guide provides a planning and verification workflow for mobile teams. Its storyboard is an illustrative design, not a customer case study or a measured conversion result. For choosing the screens themselves, start with the onboarding screen examples and decision worksheet.
Decide what the motion teaches
Write the lesson in one sentence: “Dragging the item places it in a collection,” or “Choosing a topic changes the recommended list.” If the sequence only decorates a welcome message, compare it with a simpler presentation before making it part of the critical path.
Apple's motion guidance recommends purposeful, optional motion, brief feedback and letting people cancel animations where possible. Important information should remain understandable without motion. That gives the team a useful starting point; it does not predict a conversion uplift.
Separate explanation from processing. A looping illustration is not evidence that an account was created, a preference was saved or a purchase succeeded. Display the state returned by the system responsible for that operation, and provide an understandable error path when it fails.
Storyboard the normal path and the interruptions
Consider a hypothetical reading app that demonstrates moving an article into a collection. The product task is saving an article successfully. The animation teaches the gesture; it does not own the saved collection.
| State | Visible behavior | Required alternative or recovery |
|---|---|---|
| Ready | Show the article and destination, with a short explanation. | Provide an ordinary Save action for someone who cannot or does not want to drag. |
| Demonstrating | Show one illustrative movement and retain the explanation. | Allow skip or replay without changing the saved data. |
| Interacting | Reflect the person's movement or selected action. | Cancellation returns to a usable state; controls remain labelled. |
| Saving | Show that the requested operation is pending. | Handle a slow or failed request, and prevent duplicate submissions. |
| Saved | Confirm the actual saved result and offer a next action. | A static confirmation conveys the same result when motion is reduced. |
| Interrupted | Restore the appropriate state when the app returns. | Reconcile with the saved result before replaying or advancing. |
Review backgrounding during each state, a rapid double tap, navigation away, and an asset that never loads. Specify whether replay is purely visual and which state must survive restarting the app. These decisions belong in the handoff alongside the artwork.
Choose tooling around the required behavior
Start with a small representative asset and the actual app runtime. Compare authoring, playback control, accessibility, maintenance and device behavior. A tool's product category alone cannot establish that your exported asset will work on every target.
| Option | Useful evaluation question | Proof to retain |
|---|---|---|
| Platform UI animation | Can existing controls communicate this state change clearly? | A device recording showing the interaction, interruption and reduced-motion paths. |
| Lottie | Does the exported artwork render correctly, with the playback control the app needs? | The export, library version and test results for each supported client. |
| Rive | Does the interactive asset respond correctly to the app's state and inputs? | The file, runtime/renderer versions, feature checks and recovery behavior. |
The official Lottie Android repository describes rendering After Effects animations exported as JSON through Bodymovin. Evaluate the specific animation and integration you intend to ship; an authoring preview is only one stage of that evaluation.
Rive state machines control interactive animation behavior. Its runtime feature-support reference explains that support can depend on the runtime, renderer and release. Record the versions you tested rather than assuming that a file supported in one client is supported everywhere.
Neither choice removes the app's responsibility for navigation, account state, purchases or durable results. Keep the boundary explicit: the app provides the relevant state, the visual layer presents it, and user actions are handled by the appropriate product logic. An animation-completed callback should not manufacture a successful business operation.
Make the integration contract reviewable
For each asset, record its identifier and revision, the state it consumes, the actions it can request, the fallback presentation, and who owns updates. Define what happens when an expected property is missing or an older client cannot support the new asset.
- Inputs: distinguish temporary visual state from a persisted customer choice.
- Outputs: document the meaning of each action and how duplicate delivery is handled.
- Lifecycle: decide what pauses, resumes or resets when the app backgrounds or the screen disappears.
- Resources: document loading, cache invalidation and cleanup so leaving a screen does not leave unnecessary work running.
- Compatibility: retain a fallback for the supported app versions that cannot render the new presentation.
Test the same contract separately in each client you serve. Avoid ranking frameworks by a universal frame-rate claim: results depend on the asset, device, renderer, workload and implementation. For remote changes, the server-driven UI guide provides a broader compatibility and rollback worksheet.

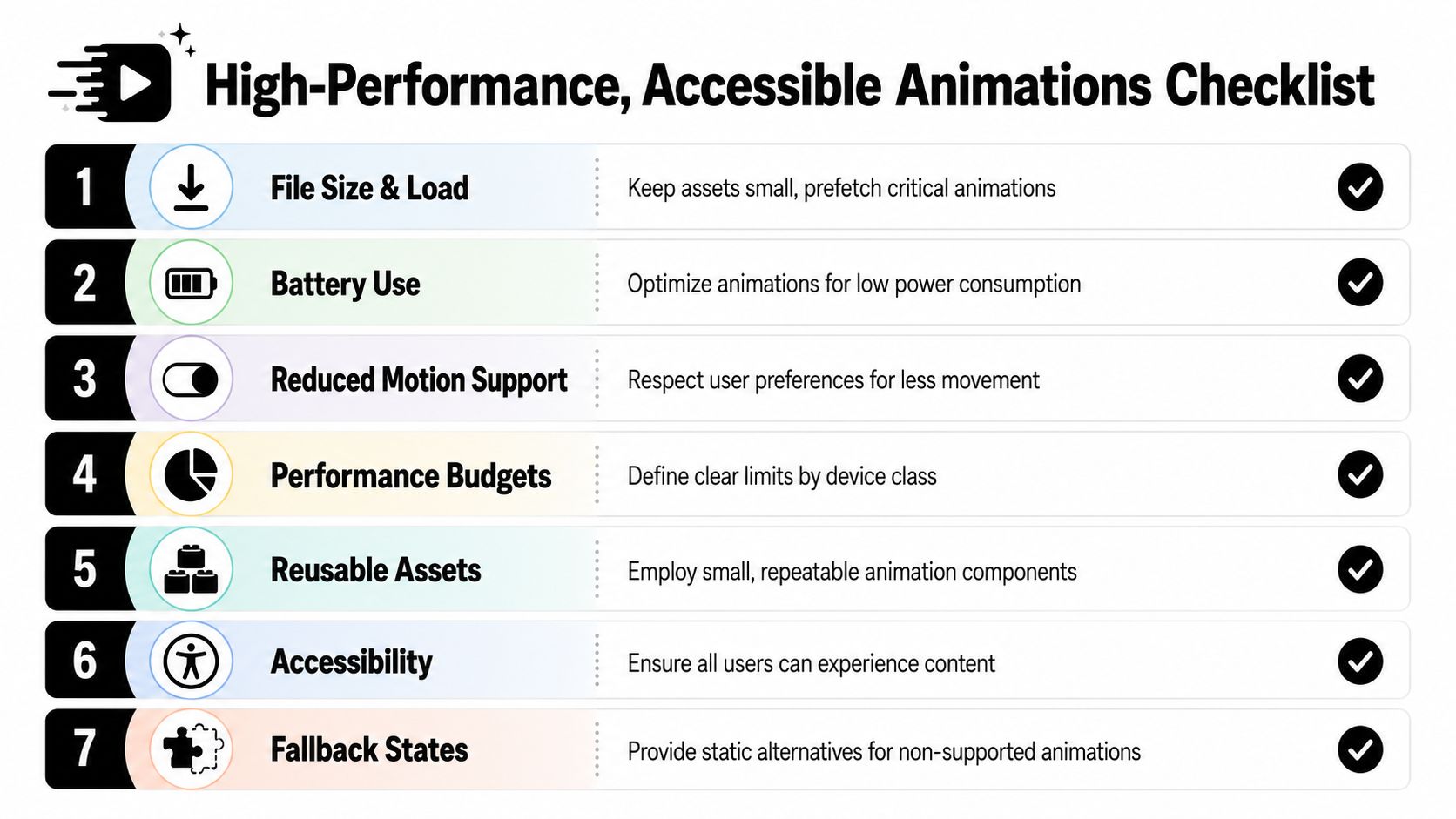

Set a device test plan before launch
Choose representative devices from your supported population, including a constrained device where relevant. Record the app build, OS, asset revision, runtime version, network condition and accessibility settings with every result. Use the same starting conditions when comparing animated and static variants.
| Check | What to observe | Failure response to define |
|---|---|---|
| Cold and warm entry | Time until the first useful control responds, including asset loading. | Keep a usable initial presentation while optional artwork loads. |
| Active interaction | Responsiveness and frame pacing during taps, gestures and transitions. | Simplify the asset or competing work, then repeat the same test. |
| Repeated entry | Memory and resource behavior after entering and leaving repeatedly. | Correct cleanup and lifecycle handling before rollout. |
| Offline or failed asset | Whether the product task remains understandable and available. | Show the fallback and a relevant retry path. |
| Reduced motion and assistive technology | Equivalent information, readable text, focus order and usable actions. | Revise the presentation without removing access to the task. |
Set acceptance budgets for your product and device population before reviewing results. Retain profiler captures for regressions; a smooth desktop preview is not a mobile performance result. Also test longer translations and larger text so moving artwork does not obscure a control or explanation.

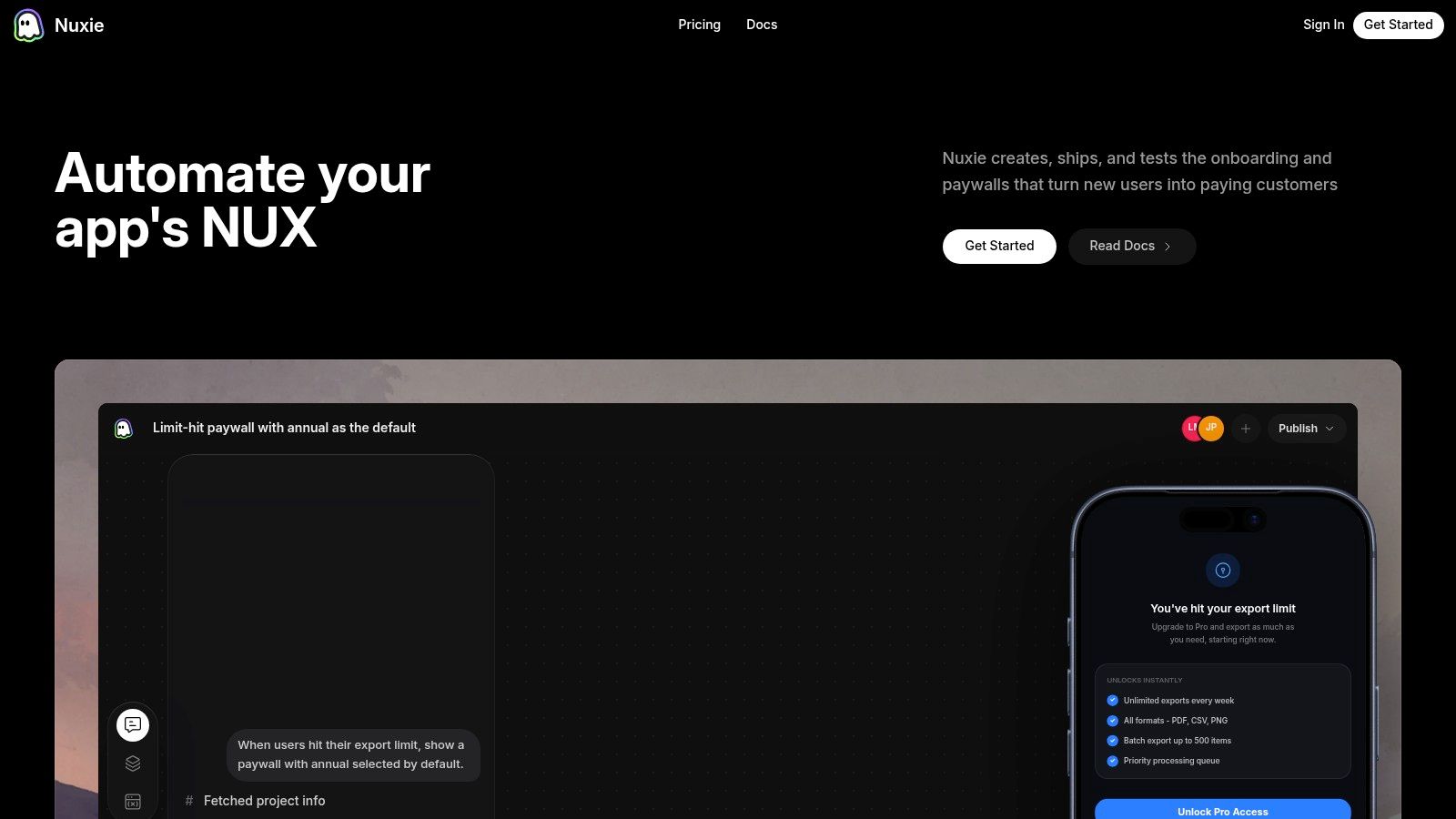

Place Nuxie delivery in the workflow
For an onboarding Experience delivered through Nuxie, use the publishing guide to review the version, app, trigger, audience and schedule, then verify the result in the integrated app. Its documented publishing workflow is separate from the task of validating a particular animation asset and its interaction contract.
Build a representative proof in the intended product before committing to an asset-import workflow. Record exactly how the animation is authored, connected to actions and tested on a device. Rive or Lottie documentation by itself does not establish an import or event-wiring capability in Nuxie.
Measure the useful action as well as the animation
Define exposure, completion, skip, fallback use and the first useful product action separately. In the reading example, a demonstration finishing and an article being saved are different events. Keep those definitions stable across platforms and variants.
A focused comparison could hold the screen order, copy and task constant while changing the demonstration. Record the eligible population, assignment, observation window and guardrails beforehand. Review time to the useful action and failures alongside completion; animation completion alone cannot establish better retention or revenue.
Begin with a small reviewed rollout and retain the earlier working version. Expand only after the intended interaction, recovery paths and measurement are understood. The result of this process should be a tested decision about where motion helps your customers, supported by evidence from your own app.
